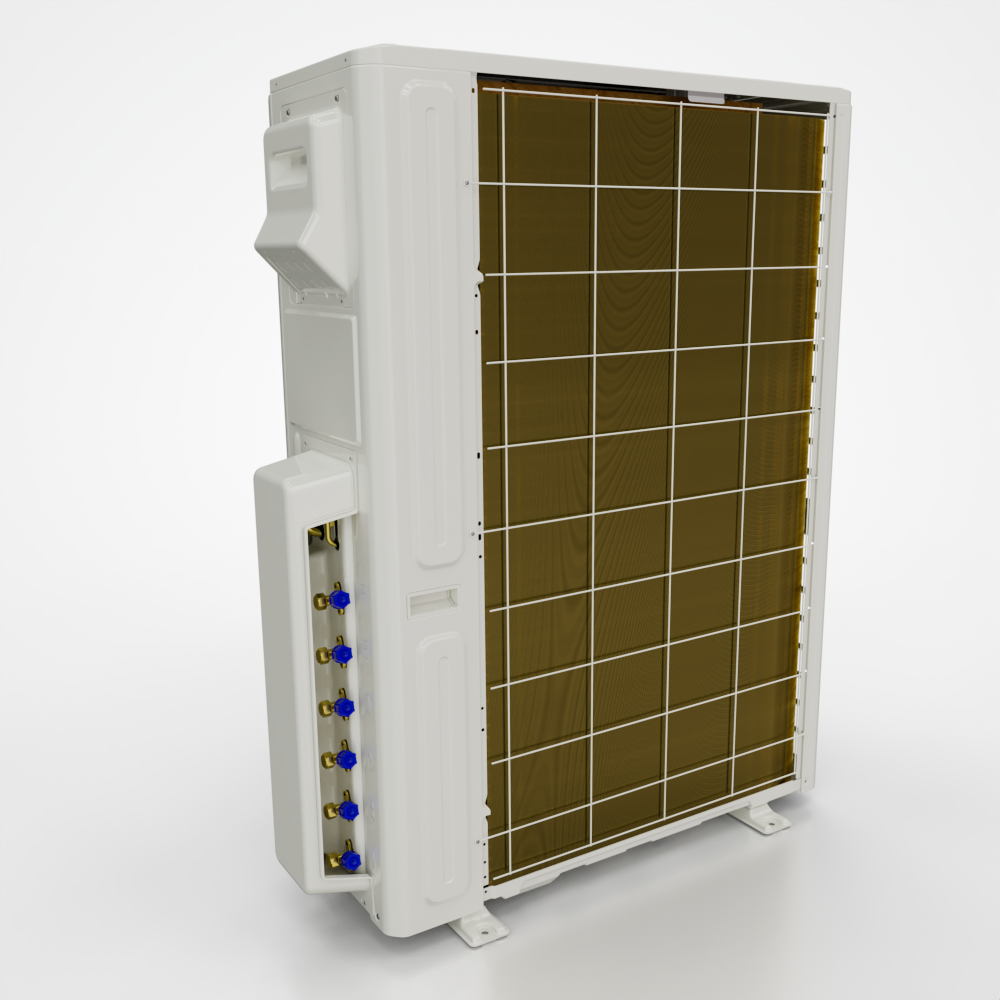

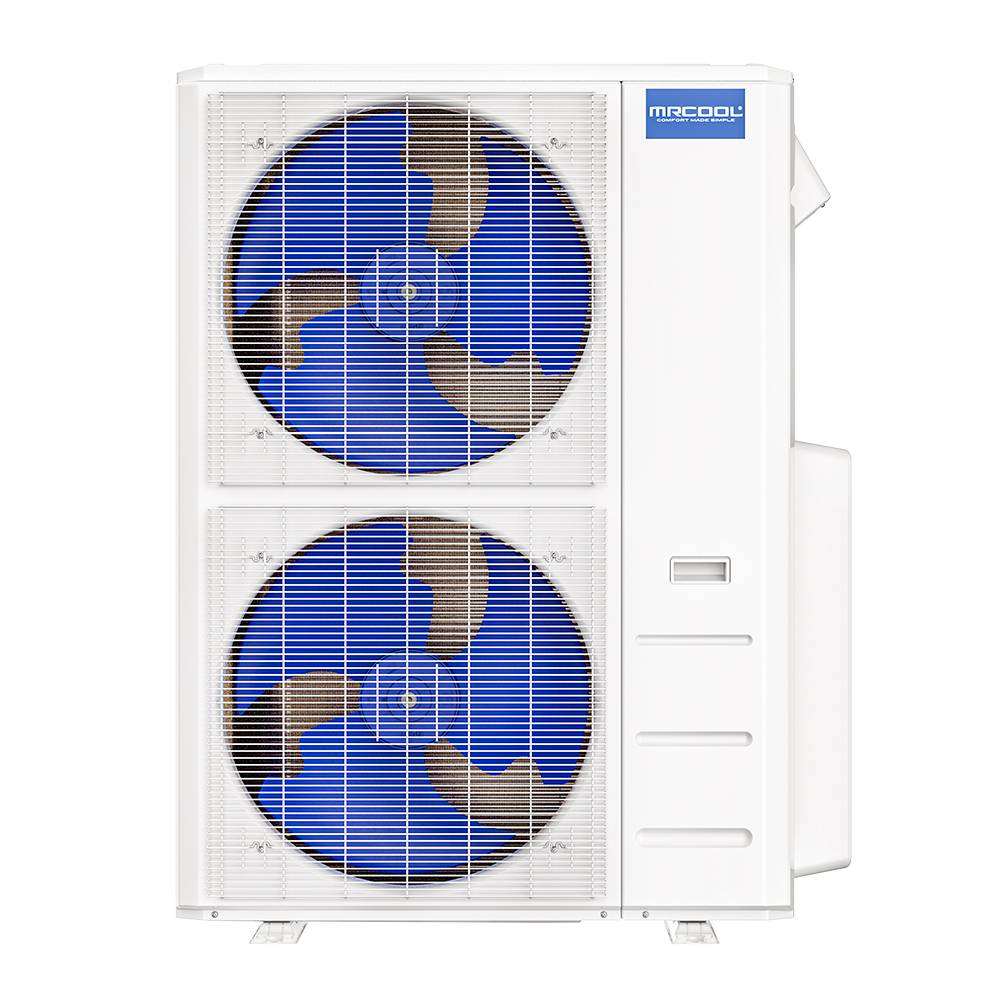

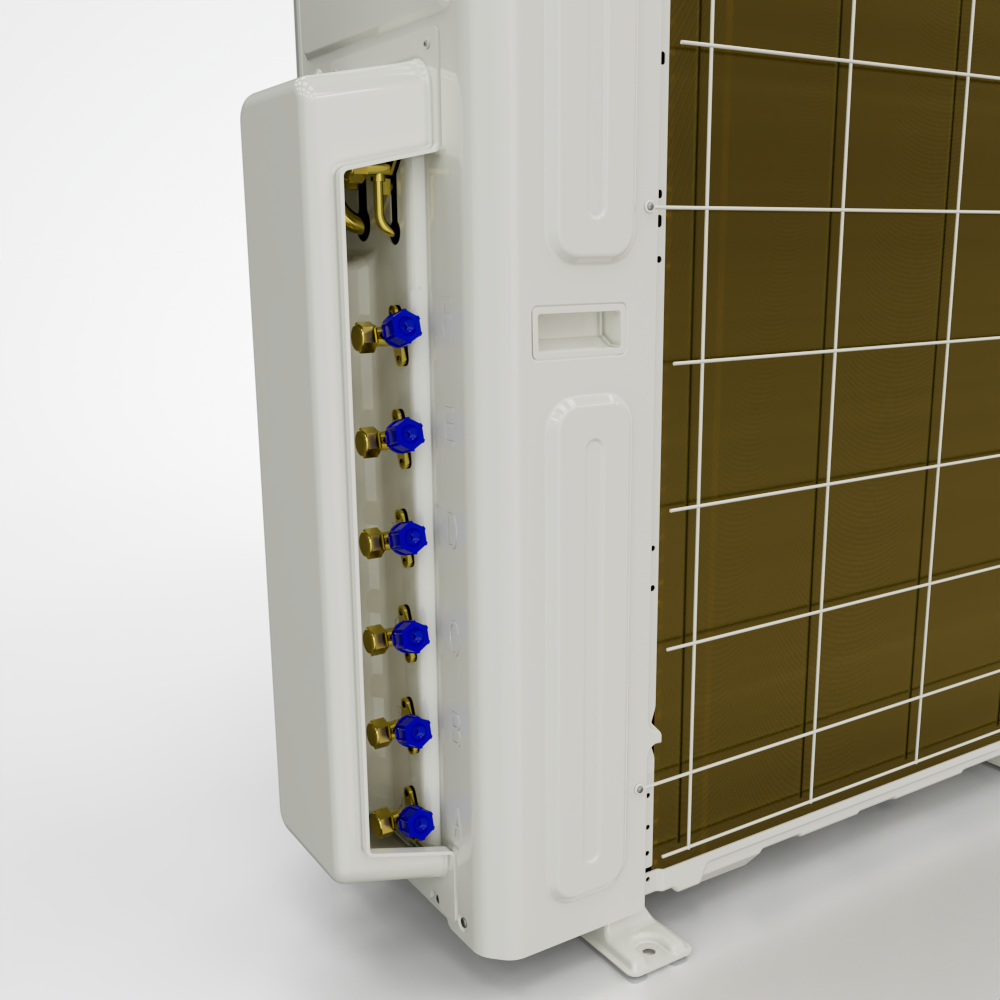

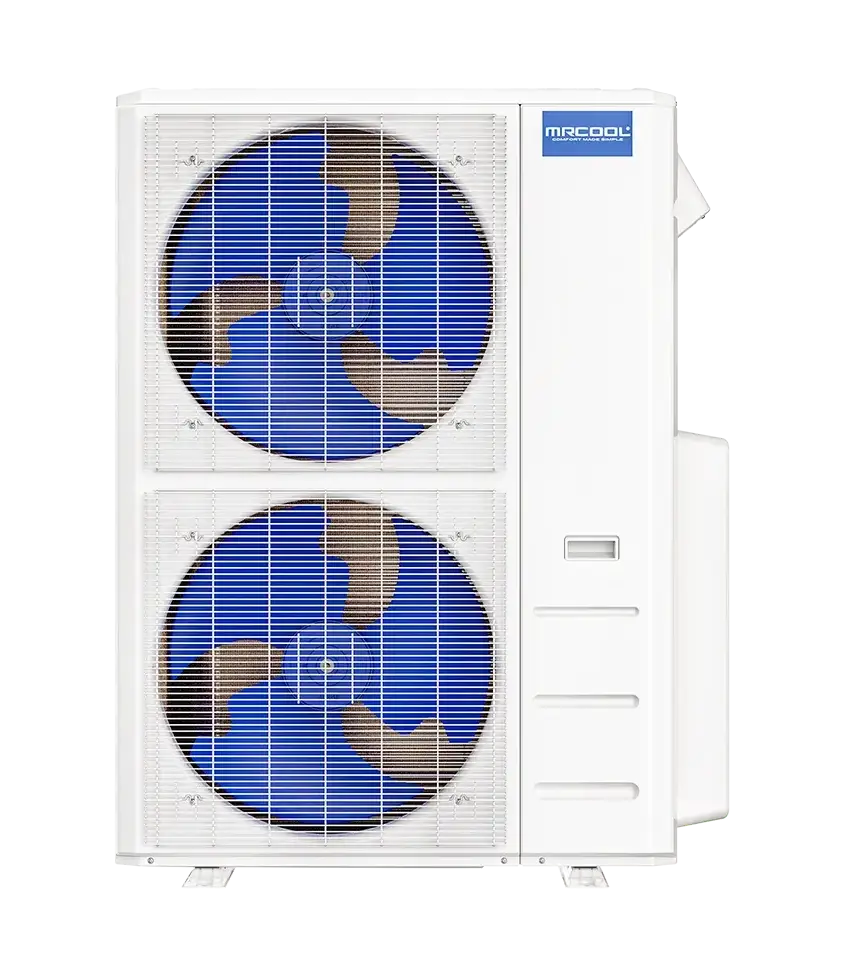

MRCOOL DIY 5th Gen 55K BTU 6-Zone Multi-Zone Heat Pump Condenser, 230V

Name: MRCOOL DIY 5th Gen 55K BTU 6-Zone Multi-Zone Heat Pump Condenser, 230V
Brand: MRCOOL
SKU: DIY-MULTI6-55HP230D-O
Price: 5667.90 CAD

Authorized
Dealer· Ships from Canada

$5,667.90 CAD

One outdoor unit that runs up to 6 indoor units, each with its own temperature. It's the 5th Gen MRCOOL® DIY® line: pre-charged R-454B Quick Connect® line sets mean no vacuum pump and no HVAC contractor for the refrigerant side.

Highlights and what's in the box ↓

Questions before you buy? Call toll-free 1-844-432-2546

This product qualifies for free shipping anywhere in Canada. All orders ship from our warehouse in Ontario.

🛠️

DIY install

🛡️

7-yr warranty

Highlights

Runs up to 6 indoor units (55,000 BTU total, roughly 2,200 sq ft combined)
22 SEER2, 10.6 HSPF2, ENERGY STAR® certified
Up to 221.4 ft of line set in total across all zones
Wi-Fi control through the Smart HVAC app, Alexa and Google Assistant
R-454B refrigerant
MRCOOL warranty: 7 years on the compressor, 5 years on parts

In the box

Outdoor multi-zone condenser

Good to know

Indoor units and line sets are sold separately: one air handler or ceiling cassette and one line set per room. Add up the indoor units' BTUs; they shouldn't go past what this condenser supports.
Uses R-454B refrigerant, like the rest of the 5th Gen DIY line. It can't be mixed with 4th Gen (R-410A) units or line sets.
The condenser is hardwired to a 230V circuit. Follow your local electrical code for the hookup; in most provinces that means a licensed electrician.
Not sure what pairs with what? The System Builder matches indoor units, outdoor units and line sets for you.
