MRCOOL DIY 5th Gen 48K BTU 6-Zone Multi-Zone Heat Pump Condenser, 230V
Dealer· Ships from Canada
$4,335.80 CAD
One outdoor unit that runs up to 6 indoor units, each with its own temperature. It's the 5th Gen MRCOOL® DIY® line: pre-charged R-454B Quick Connect® line sets mean no vacuum pump and no HVAC contractor for the refrigerant side.
Highlights and what's in the box ↓1
This product qualifies for free shipping anywhere in Canada. All orders ship from our warehouse in Ontario.
🛠️
DIY install
🛡️
7-yr warranty
Highlights
- Runs up to 6 indoor units (48,000 BTU total, roughly 1,900 sq ft combined)
- 21.8 SEER2, 10 HSPF2, ENERGY STAR® certified
- Up to 221.4 ft of line set in total across all zones
- Wi-Fi control through the Smart HVAC app, Alexa and Google Assistant
- R-454B refrigerant
- MRCOOL warranty: 7 years on the compressor, 5 years on parts
In the box

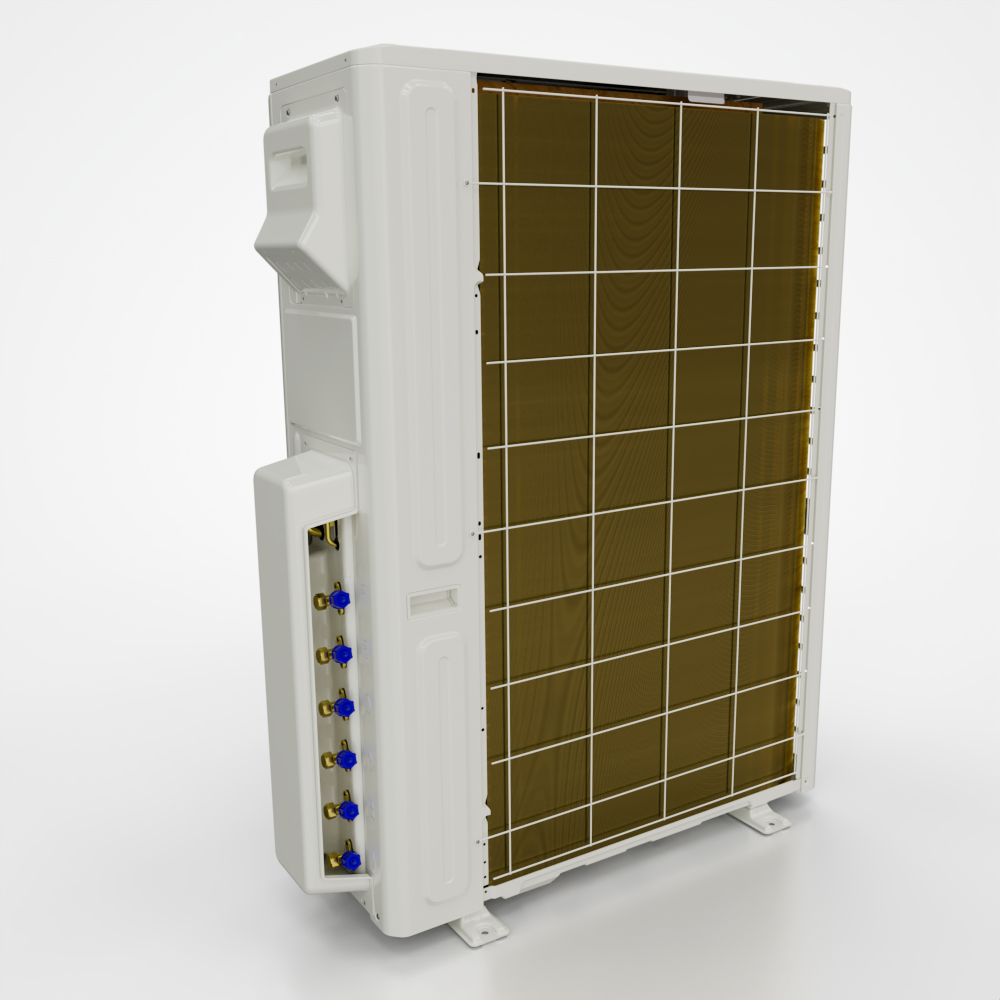

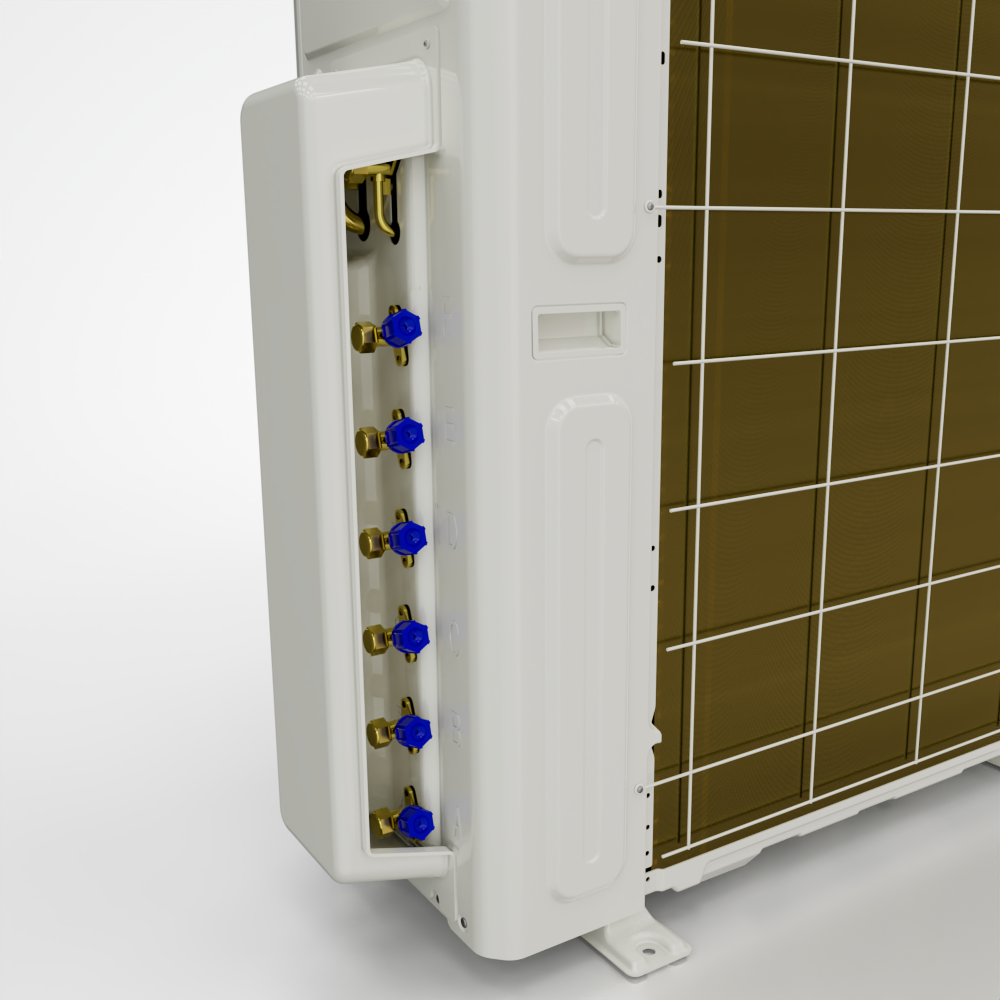

- Outdoor multi-zone condenser
Good to know
- Indoor units and line sets are sold separately: one air handler or ceiling cassette and one line set per room. Add up the indoor units' BTUs; they shouldn't go past what this condenser supports.
- Uses R-454B refrigerant, like the rest of the 5th Gen DIY line. It can't be mixed with 4th Gen (R-410A) units or line sets.
- The condenser is hardwired to a 230V circuit. Follow your local electrical code for the hookup; in most provinces that means a licensed electrician.
- Not sure what pairs with what? The System Builder matches indoor units, outdoor units and line sets for you.
Specifications
- Series
- DIY 5th gen Multi-Zone Mini-splits
- Voltage
- 230V
- Refrigerant
- R-454B
- Cooling Capacity (BTU)
- 43000
- Heating Capacity (BTU)
- 48000
- SEER2
- 21.8
- HSPF2
- 10
- Zone Capacity
- 6
- Sound Level (dBA)
- 64
- WiFi Enabled
- WiFi Enabled: Yes
- Role
- Condenser
- System Line
- DIY Mini-Split
- Generation
- 5th Gen
- Zone Type
- Multi-Zone
- Nominal BTU
- 48000
- Max Zones
- 6
DIY install
Pre-charged Quick Connect® lines mean no vacuum pump and no licensed tech — just comfort, exactly where you need it.
